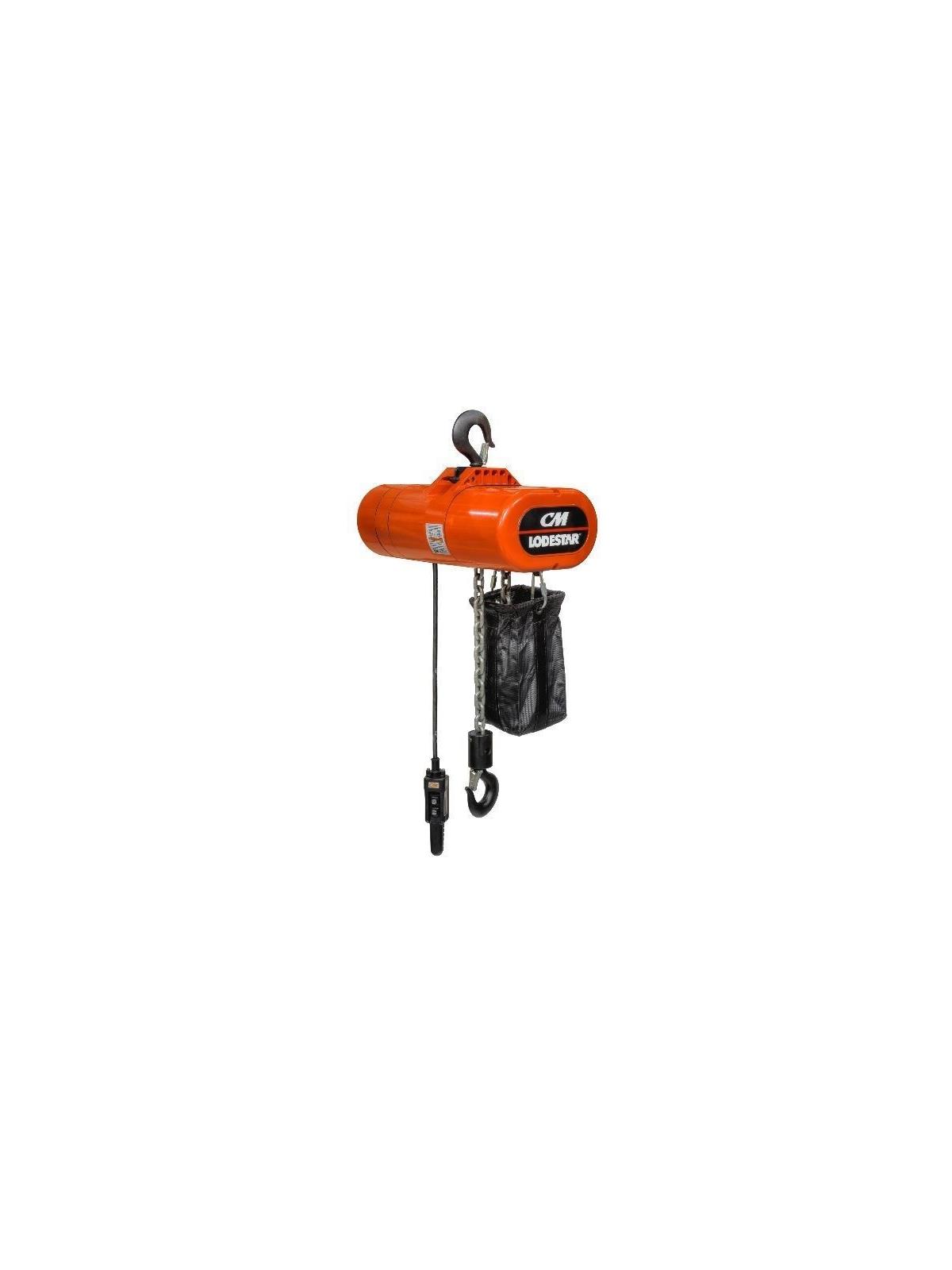

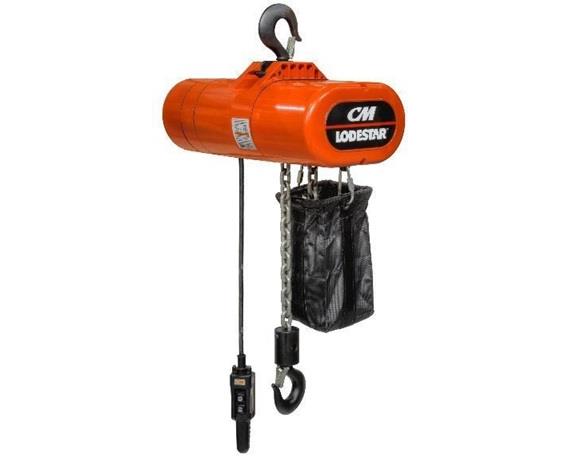

CM LODESTAR® Hoist

Quieter operation.
Easy access control panel.
10' Standard lift height.

Hoist features capacities up to 3 tons. Provides consistent operation throughout its long service life. The motor is heavy duty and efficient and is designed to operate on power supplies worldwide. Cast aluminum lightweight housing with acid resistant powder coated paint for superior durability. Control panel has easy access to plug and play connectors for quick voltage change on dual voltage motors. The clutch is designed to prevent lifting loads greater than rated capacity. Made in the USA. FOB Shipping Point.

Tariffs/surcharges may be added.

Product No.	Description	Capacity (Ton)	Model	Standard Lift Speed (Fpm)	Hoist	Voltage	Chain Container	Wt. (lbs.)	Price Ea.
H270XNH-A-HOOK	Hook	1/8	A	32	Single	115 or 230 or 460	Fabric	54	$3,126.00
H270XNH-A2-HOOK	Hook	1/8	A2	10/32	Two Speed	230 or 460	Metal	67	$3,725.00
H272XNH-HOOK	Hook	1/4	B	16	Single	115 or 230 or 460	Fabric	53	$3,611.00
H2738-1/4T-U-460-X-HOOK	Hook	1/4	C2-Classic Model	10/32	Two Speed	460	Metal	73	$4,394.00
H275XNH-HOOK	Hook	1/2	F	16	Single	115 or 230 or 460	Fabric	61	$4,114.00
H2758-1/2T-U-460-X-HOOK	Hook	1/2	F2-Classic Model	5/16	Two Speed	460	Metal	74	$4,713.00
H276XNH-HOOK	Hook	1	L	8	Single	115 or 230 or 460	Fabric	113	$4,597.00
H3505-1T-U-460-X-HOOK	Hook	1	L2-Classic Model	5/16	Two Speed	460	Metal	116	$5,718.00
H353XNH-HOOK	Hook	2	R	8	Single	115 or 230 or 460	Fabric	131	$5,625.00
H3562-2T-U-460-X-HOOK	Hook	2	RR2-Classic Model	5/16	Two Speed	460	Metal	149	$8,273.00
H950XNH-HOOK	Hook	3	RT	5.5	Single	115 or 230 or 460	Fabric	158	$6,517.00
H951XNH-HOOK	Hook	3	RRT2	3/11	Two Speed	230 or 460	Metal	176	$8,716.00
H270XNH-A-PT	Push Trolley	1/8	A	32	Single	115 or 230 or 460	Fabric	80	$3,469.00
H270XNH-A2-PT	Push Trolley	1/8	A2	10/32	Two Speed	230 or 460	Metal	93	$4,068.00
H272XNH-PT	Push Trolley	1/4	B	16	Single	115 or 230 or 460	Fabric	79	$3,954.00
H2738-1/4T-U-460-X-PT	Push Trolley	1/4	C2-Classic Model	10/32	Two Speed	460	Metal	99	$4,737.00
H275XNH-PT	Push Trolley	1/2	F	16	Single	115 or 230 or 460	Fabric	87	$4,457.00
H2758-1/2T-U-460-X-PT	Push Trolley	1/2	F2-Classic Model	5/16	Two Speed	460	Metal	100	$5,056.00
H276XNH-PT	Push Trolley	1	L	8	Single	115 or 230 or 460	Fabric	139	$5,015.00
H3505-1T-U-460-X-PT	Push Trolley	1	L2-Classic Model	5/16	Two Speed	460	Metal	142	$6,137.00
H353XNH-PT	Push Trolley	2	R	8	Single	115 or 230 or 460	Fabric	157	$6,056.00
H3562-2T-U-460-X-PT	Push Trolley	2	RR2-Classic Model	5/16	Two Speed	460	Metal	175	$8,703.00
H950XNH-PT	Push Trolley	3	RT	5.5	Single	115 or 230 or 460	Fabric	184	$7,312.00
H951XNH-PT	Push Trolley	3	RRT2	3/11	Two Speed	230 or 460	Metal	202	$9,511.00
H270XNH-A-MDT	Motor Driven Trolley	1/8	A	32	Single	115 or 230 or 460	Fabric	142	$7,236.00
H270XNH-A2-MDT	Motor Driven Trolley	1/8	A2	10/32	Two Speed	230 or 460	Metal	155	$7,835.00
H272XNH-MDT	Motor Driven Trolley	1/4	B	16	Single	115 or 230 or 460	Fabric	141	$7,721.00
H2738-1/4T-U-460-X-MDT	Motor Driven Trolley	1/4	C2-Classic Model	10/32	Two Speed	460	Metal	161	$8,504.00
H275XNH-MDT	Motor Driven Trolley	1/2	F	16	Single	115 or 230 or 460	Fabric	149	$8,224.00
H2758-1/2T-U-460-X-MDT	Motor Driven Trolley	1/2	F2-Classic Model	5/16	Two Speed	460	Metal	162	$8,823.00
H276XNH-MDT	Motor Driven Trolley	1	L	8	Single	115 or 230 or 460	Fabric	201	$8,786.00
H3505-1T-U-460-X-MDT	Motor Driven Trolley	1	L2-Classic Model	5/16	Two Speed	460	Metal	204	$9,907.00
H353XNH-MDT	Motor Driven Trolley	2	R	8	Single	115 or 230 or 460	Fabric	219	$9,826.00
H3562-2T-U-460-X-MDT	Motor Driven Trolley	2	RR2-Classic Model	5/16	Two Speed	460	Metal	237	$12,474.00
H950XNH-MDT	Motor Driven Trolley	3	RT	5.5	Single	115 or 230 or 460	Fabric	246	$11,158.00
H951XNH-MDT	Motor Driven Trolley	3	RRT2	3/11	Two Speed	230 or 460	Metal	264	$13,357.00
